Clearflo® Fuel & Oil Grade PVC Tubing

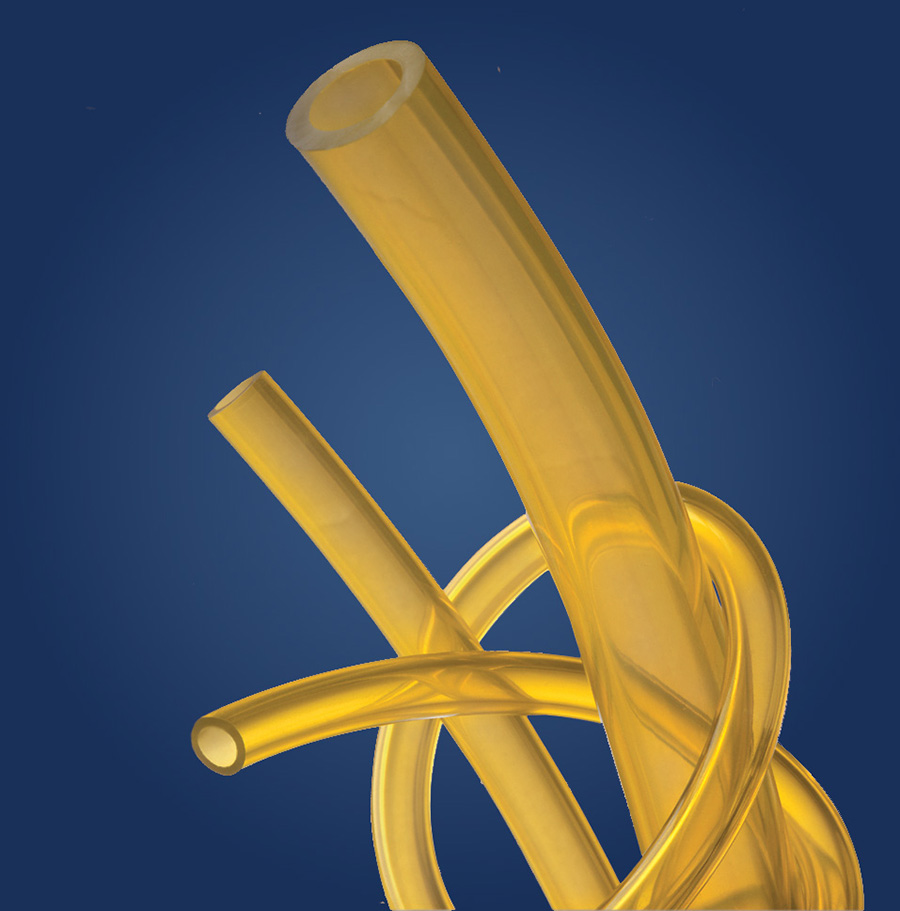

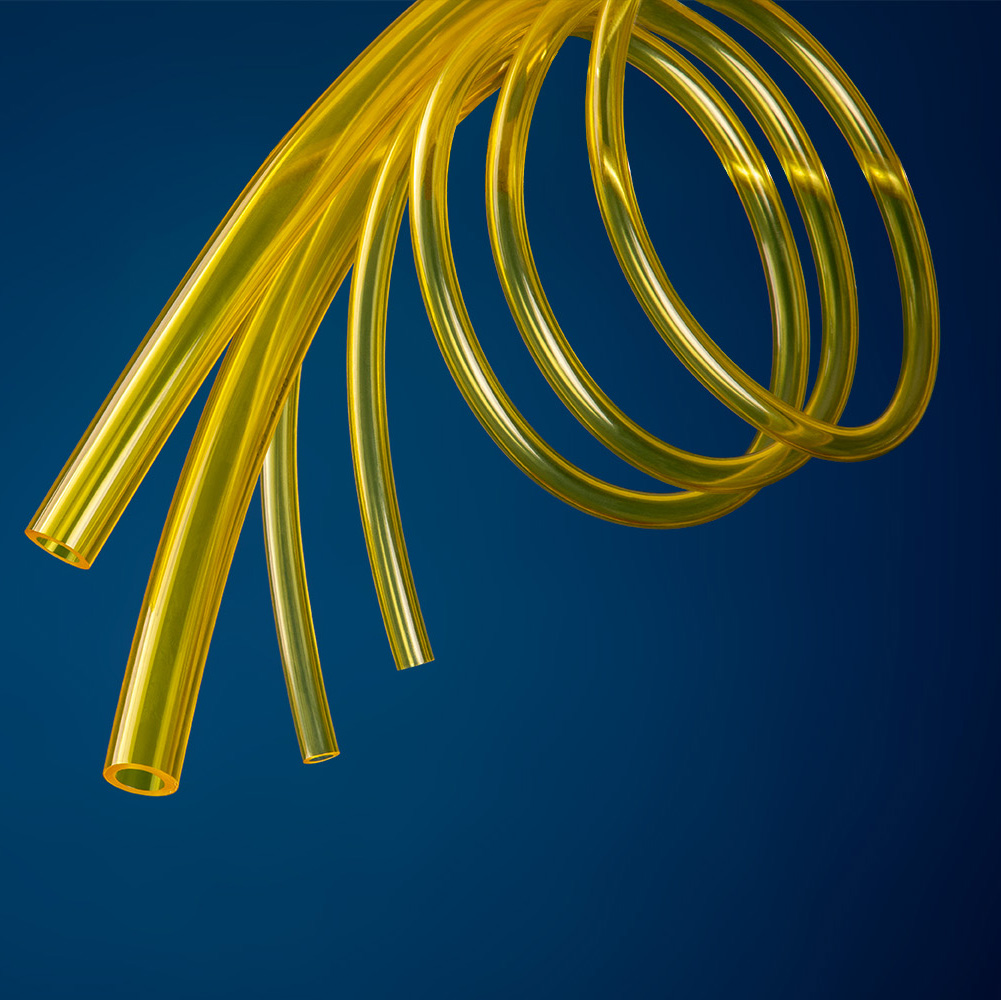

Transparent yellow Clearflo Fuel & Oil was created to extend the working life of PVC tubing in fuel and oil applications. Gasoline and oils harden standard PVC over periods of intermittent use, but Clearflo Fuel & Oil is specially formulated to prevent hardening. Clearflo is generally unaffected by most oxidizing and reducing agents. Diluted acids and alkalies have little effect, though if highly concentrated they tend to make the tubing less pliable. If chemical resistance is of major concern, in-plant tests are suggested.
- Formulated to extend tubing life in fuel and oil applications
- Handles a wide variety of fuels, oils, chemicals, gases and liquids
- Mirror-smooth surfaces provide outstanding flow characteristics
- Lightweight yet tough and abrasion resistant
- As flexible as rubber
- Raw material meets UL94 HB burn rating
- BPA-free
- RoHS compliant
- Fuel & Oil Lines
- Air & Gas Lines
- Chemical Lines
- Instrumentation
- Laboratory & Research
- Material Handling
- Protective Jacketing
- Pump Feed & Discharge
| Value | |
|---|---|
| Hardness, Shore A ±5† | 62 |
| Tensile Strength, psi | 1980 |
| Elongation at Break, % | 730 |
| Brittle Temperature, °F | -20 |
| Max. Operating Temperature, °F | 175 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Size – Tubing is stocked in common I.D. and O.D. sizes, but this product can be custom extruded in other sizes. Let’s talk about what you need. Minimum quantities apply.
All custom products are subject to minimum order quantities and lead times. For other custom options, please contact us.
Options & Sizes
| Part Number | ID (in) |
OD (in) |
Wall (in) |
Standard Length (ft) |
Working PSI at 70°F |
|---|---|---|---|---|---|
| 1110032 | .125 (1/8) | .250 (1/4) | .063 (1/16) | 50 | 68 |
| 1110067 | .188 (3/16) | .313 (5/16) | .063 (1/16) | 100 | 55 |
| 1110102 | .250 (1/4) | .375 (3/8) | .063 (1/16) | 50, 100 | 55 |
| 1110172 | .500 (1/2) | .750 (3/4) | .125 (1/8) | 50 | 45 |
*Limited stock availability; lead times and minimums may apply —
call for details.
Sold by standard coil length (50 ft); additional lengths may be available — call for details.
Add length suffix to part number when ordering. Example: 50 ft. of .030” I.D. x .160” O.D. tubing is part number 284 0404-50.
ID indicates the critical dimension for fittings application.
