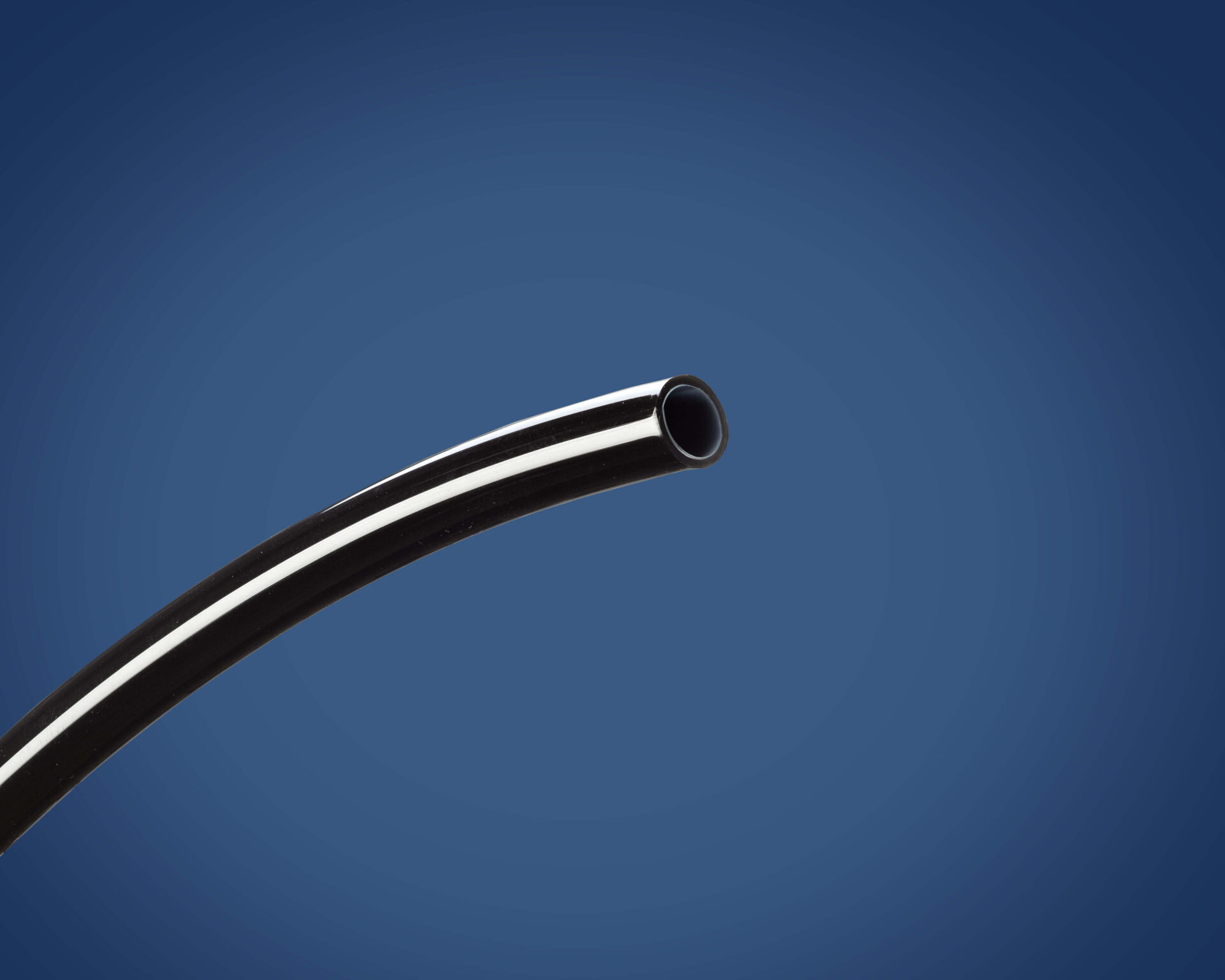

Hytrel®-Lined PVC Tubing
Hytrel-Lined PVC Tubing is designed to offer the flexibility and durability of PVC tubing with a liner of inert Hytrel, made by DuPont, for additional resistance to oils, high temperatures and gas permeability. A patented process molecularly bonds liner and cover to make a virtually inseparable product. This cost-saving co-extrusion permits Hytrel-Lined PVC to be substituted for all-Hytrel tubing in many applications. The Hytrel polyester liner offers internal resistance to chemical attack, abrasion and contamination, along with a high degree of resistivity to the adherence of particulates, making Hytrel-Lined PVC exceptionally suited for use in air sampling applications. Hytrel-Lined PVC Tubing’s black PVC cover offers excellent resistance to abrasion and oils, as well as ultraviolet exposure. The pliable PVC also provides a degree of shock resistance and insulates the tubing from electronic interference. Hytrel-Lined PVC Tubing is made of FDA-sanctioned ingredients for use with food contact surfaces. The tubing is certified for CFR Title 21 Section 177.1550 and CFR Title 21 Section 177.2600. It may be subjected to ethylene oxide sterilization processes.
- Made from FDA-compliant ingredients; suitable for food contact
- Hytrel liner does not contain plasticizers
- Hytrel liner resists high temperatures and oils, making it ideal for hot beverage vending machine applications
- Low permeability to refrigerant gases, hydrocarbons and moisture
- Superior barrier and dielectric characteristics — well suited for welding applications
- Resists U.V. exposure, ozone, gases, moisture and temperatures
- Low adherence of particulates — ideal for air sampling
- Ethylene Oxide (EtO) sterilizable
- Hytrel liner is REACH compliant
- Air Sampling
- Appliances
- Computer Equipment
- Floor Care Equipment
- Fluid Transfer
- Laboratories
- Lawn & Garden Equipment
- Packaging Equipment
- Propane Gas Delivery
- Solvents
- Thermal Protection
- Vending Machines
- Many More
| Hytrel liner | PVC Cover | |
|---|---|---|
| Shore Hardness | 55D | 80A |
| Tensile Strength, psi | 6000 | 2000 |
| Elongation at Break, % | 500 | 360 |
| Brittle Temperature, °F | -148 | -25.6 |
| Max. Operating Temp., °F | 160 | 160 |
| Color | Light Blue | Black |
Notes: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Size – Tubing is stocked in common I.D. and O.D. sizes, but this product can be custom extruded in other sizes. Let’s talk about what you need. Minimum quantities apply.
All custom products are subject to minimum order quantities and lead times. For other custom options, please contact us.
Options & Sizes
| Part Number | ID (in) |
OD (in) |
Wall (in) |
Standard Length Lengths (ft) |
|---|---|---|---|---|
| 4130091 | 0.17 | .250 (1/4) | 0.04 | 500 |
| 4130133 | .250 (1/4) | .375 (3/8) | .063 (1/16) | 500 |
| 4130217 | .375 (3/8) | .500 (1/2) | .063 (1/16) | 250 |
Sold by standard coil length only. Add length suffix to part number when ordering. Example: 500 ft. of .170” ID x 1/4” OD tubing is part number 413 0091-500.
ID is the critical dimension for fittings application.
