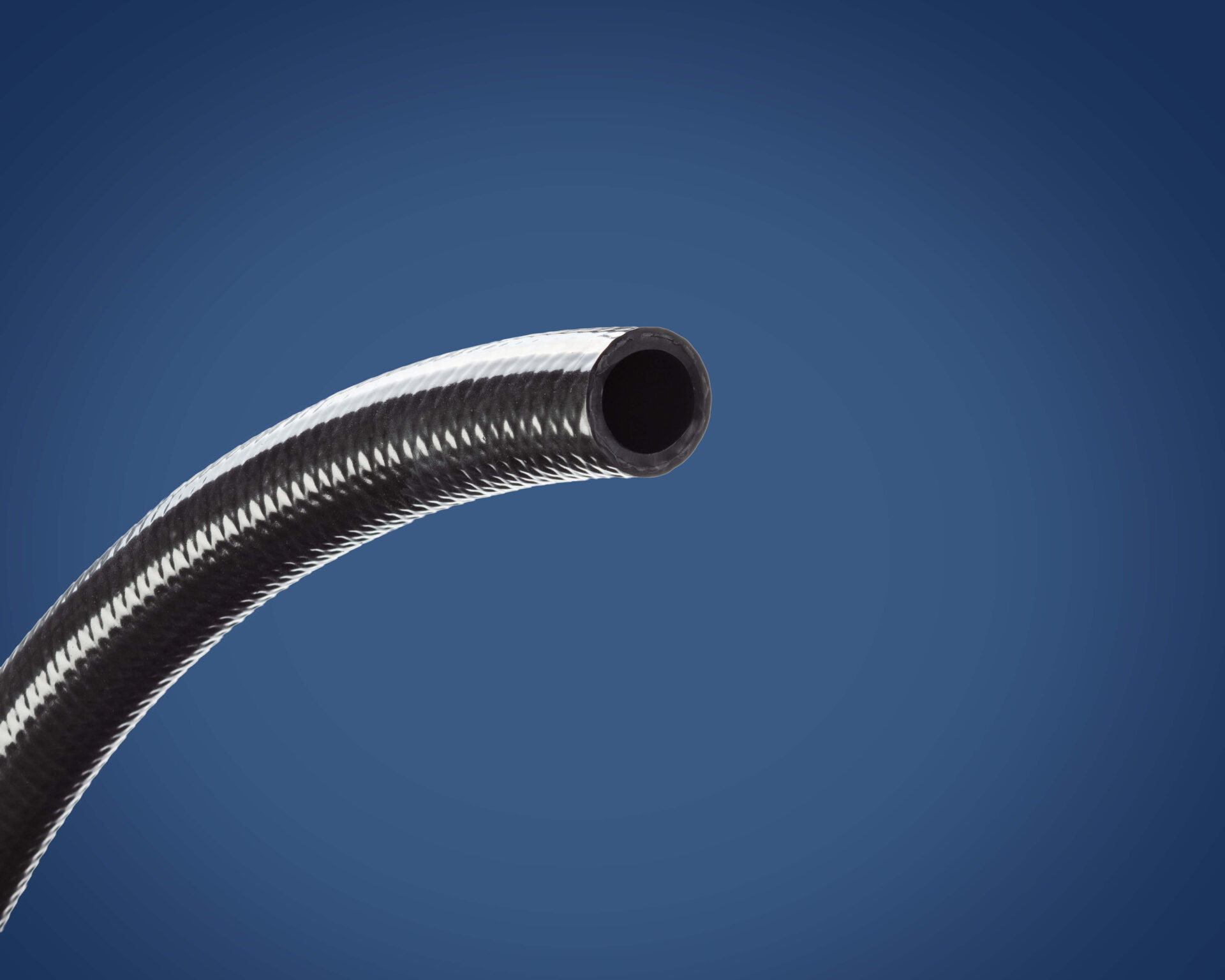

Nylobrade® Push-On Braid Reinforced Opaque Hose
Nylobrade Push-On may be used up to 200 psi at 68°F. Elevated temperatures require in-field testing to determine suitability for use without clamps. The opaque black color of Nylobrade Push-On helps hide dirt and scuff marks.
- A blend of nitrile rubber and PVC reinforced with polyester
- Specially designed for use with Push-On style barbed fittings which eliminate the need for clamps
- Non-marking cover, resistant to U.V., ozone, and abrasion
- Electrically non-conductive
- Offers cold temperature flexibility
- Well suited for air and water lines and outdoor use
- Silicone free — use as air hose in paint applications
- Lighter weight and more abrasion resistant than all-rubber, push-on style hose
- Chemical Transfer
- Coolant Lines
- Filling Lines
- Hydraulics
- Instrumentation Lines
- Material Handling
- Pneumatics
- Spray Systems
- Air Lines
- Water & Fluid Lines
| Value | |
|---|---|
| Hardness, Shore A ±5 | 75 |
| Tensile Strength, psi | 1800 |
| Ultimate Elongation, % | 350 |
| 100% Modulus of Elasticity, % | 1200 |
| Brittle Temperature, °F | -35 |
| Max. Operating Temperature, °F | 150 |
NOTE: Pressure rating of 200 psi will decrease when hose is used above ambient temperature without clamps.
Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote
All custom products are subject to minimum order quantities and lead times. For other custom options, please contact us.
Options & Sizes
| Part Number | ID (in) |
OD (in) |
Wall (in) |
Working PSI at 68°F |
Bend Radius (in) |
|---|---|---|---|---|---|
| 4310054 | 0.260 | 0.500 | 0.120 | 200 | 2.500 |
| 4310068 | 0.318 | 0.570 | 0.123 | 200 | 3.200 |
| 4310082 | 0.385 | 0.630 | 0.120 | 200 | 3.850 |
| 4310110 | 0.510 | 0.750 | 0.120 | 200 | 5 |
| 4310138 | 0.635 | 0.880 | 0.120 | 200 | 6.250 |
| 4310166 | 0.765 | 1.04 | 0.133 | 200 | 7.500 |
Standard coil length is 100 ft. Add length suffix to part number when ordering.
Example: 100 ft. of 2” ID x 2.382” OD hose is part number 140 0406-100.
Working pressures are calculated from burst testing using a 3:1 safety factor.
Application testing is recommended.
ID is the critical dimension for fittings application.
