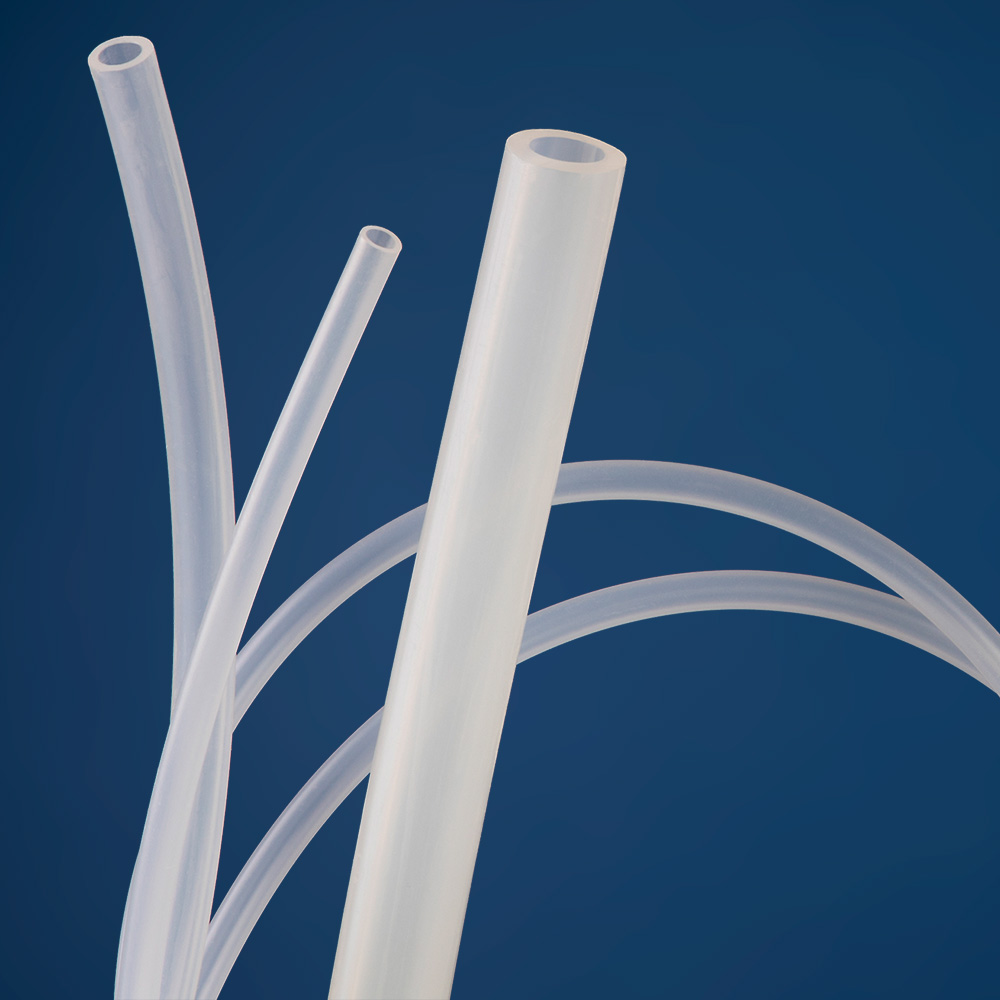

Polypropylene-Lined EVA Tubing
PE-Lined EVA (Ethylene Vinyl Acetate) tubing is designed for use where cleanliness and flexibility are required. It offers good general chemical resistance and non-toxicity. A co-extruded product, PE-Lined EVA is made of a low density polyethylene liner with an EVA outer jacket. It is manufactured in a patented process (Patent No. 4061461) to ensure the highest bond quality possible. For working temperatures up to 180°F and greater stress resistance, ask about irradiated PE-Lined EVA tubing.
- Made from Class VI, FDA-sanctioned ingredients for use with food and beverage contact surfaces
- Natural translucent color for visual contact with the flow
- Remains flexible at temperatures from -29°F to 160°F
- Non-toxic; odorless, tasteless, and inert
- Remains pliable even after extended contact with alcohol
- Good weatherability properties — resists gases and moisture
- Low friction coefficient and good general chemical resistance
- Beverage Distribution
- Deionized Water Transfer
- Food & Beverage Processing
- Hospitals & Laboratories
| PE Cover | EVA Cover | |
|---|---|---|
| Hardness, Shore D | 50 | |
| Hardness, Shore A | 80 | |
| Tensile Strength, psi | 2100 | 1500 |
| Elongation at Break, % | 550 | 750 |
| Brittle Temperature, °F | -29 | -159 |
| Max. Operating Temp., °F | 160 | 160 |
| Color | Translucent | Translucent |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Options & Sizes
| Part Number | ID (in.) |
OD (in.) |
Wall (in.) |
Working PSI (at 70°F) |
Burst PSI (at 70°F) |
Colors | Weight (lbs./100 ft.) |
|---|---|---|---|---|---|---|---|
| 4100047 | 1/8 | 3/16 | 1/32 | 43 | 129 | White | 0.62 |
| 4100075 | 1/8 | 1/4 | 1/16 | 71 | 213 | White | 1.51 |
| 4100327 | 1/2 | 3/4 | 1/8 | 50 | 150 | White | 10 |
| 4100495 | 1 | 1-1/4 | 1/8 | 28 | 84 | White | 17.96 |
*Limited stock availability; lead times and minimums may apply — call for details.
Sold by standard coil length only (50 ft.). Add length suffix to part number when ordering. Example: 50 ft. of 1/8” ID x 1/4” OD tubing is part number 410 0075-50.
ID is the critical dimension for fittings application.
