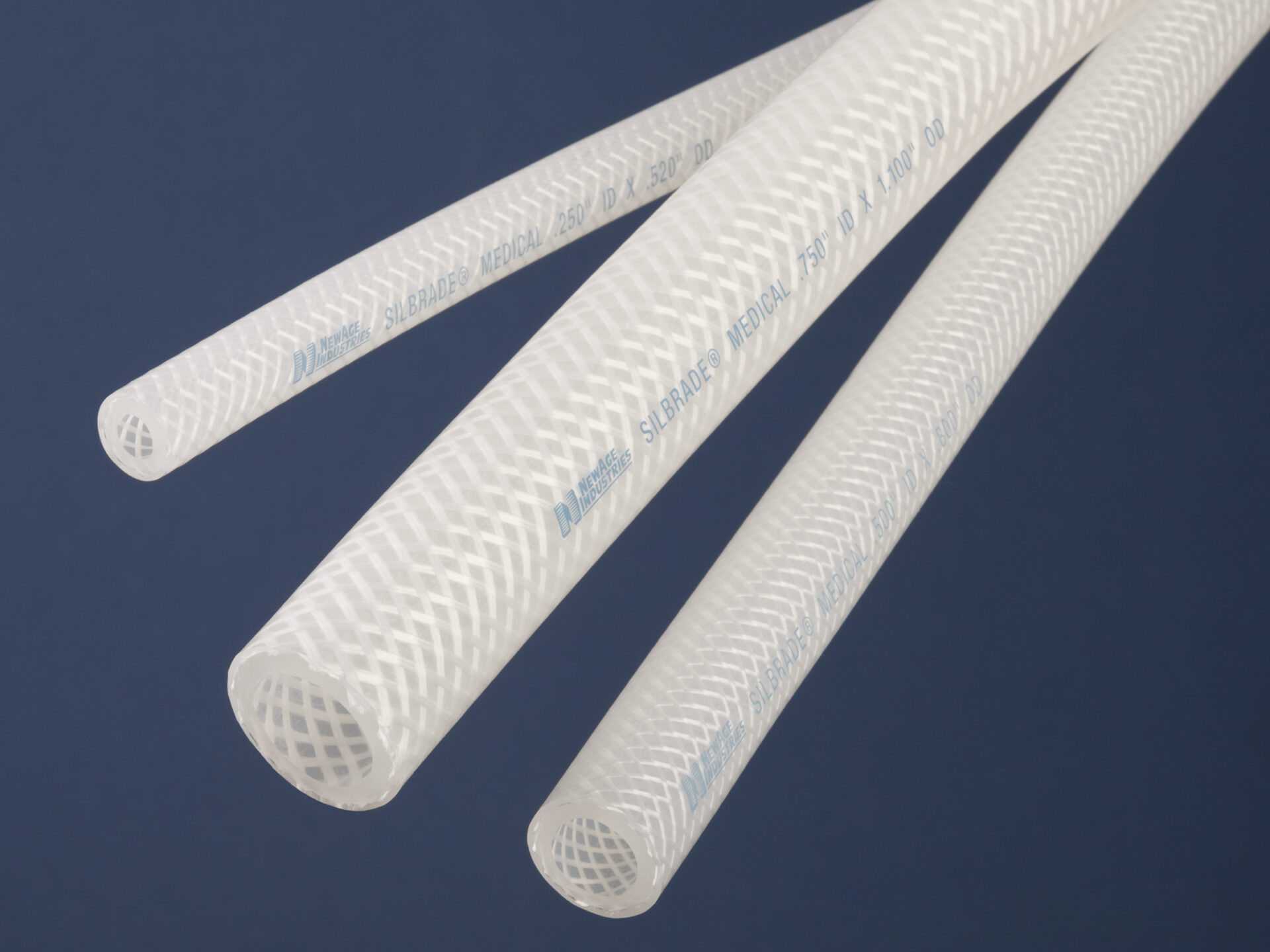

Silbrade® Medical – Medical Grade Braid Reinforced Silicone Hose
Silbrade Medical’s construction consists of a core of silicone elastomer, an open polyester braid reinforcing layer, and a cover layer of silicone elastomer. Good manufacturing procedures, including lot traceability, are applicable to all Class VI ingredients. Silbrade Medical is a peroxide-cured product. The hose’s smooth bore, coupled with its resistance to allow material to adhere to the tube wall, facilitates easy cleaning and system purging. ^Silbrade Medical may be low pressure sterilized in-line or autoclaved up to 250°F in a normal autoclaving cycle. If exposed to repeated steam sterilization or long-term high temperature or pressure, silicone will eventually relax and become gummy. It should then be replaced. Peroxide-cured Silbrade Medical hose is supplied in individual, non-sterile, heat-sealed polybags and should be sterilized prior to use. Silbrade Medical is not recommended for implantable or in-bodyuses or for continuous steam applications. Care is recommended in the selection and application of fittings and clamps, as sharp barbed fittings or unlined clamps could tear into the hose wall and possibly cause a failure, especially at elevated pressures.
- Peroxide-cured
- Open mesh polyester braiding incorporated within the walls of silicone tubing
- Designed for elevated pressure applications
- Finished product meets USP Class VI requirements
- Raw materials meets FDA 21 CFR 177.2600 requirements for use with food contact surfaces
- Able to resist extreme temperature variations
- Reusable — will withstand repeated sterilization
- Free of BPA, latex and phthalates
- Naturally translucent so fluid flow is visible
- Manufactured in a controlled environment
- RoHS compliant
- Biological Fluids
- Cell Culture
- Clean Room Applications
- Laboratory Uses
- Pharmaceuticals
- Sterile Filling
- Vaccines
| Value | |
|---|---|
| Hardness, Shore A ±5 – Liner | 70 |
| Hardness, Shore A ±5 – Cover | 60 |
| Tensile Strength, psi | 1460 |
| Elongation at Break, % | 320 |
| Tear Resistance, Die B, ppi | 100 |
| Brittle Temperature, °F | -99 |
| Min. Operating Temperature, °F | -99 |
| Max. Operating Temperature, °F | 350 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Size – Tubing is stocked in common I.D. and O.D. sizes, but this product can be custom extruded in other sizes. Let’s talk about what you need. Minimum quantities apply.
Color – Have your tubing colored to match equipment, company colors, or identify line (hot or cold, indoor or outdoor, chemicals, etc..).
All custom products are subject to minimum order quantities and lead times. For other custom options, please contact us.
Options & Sizes
|
Part Number
|
ID
(in.) |
OD
(in.) |
Wall
(in.) |
Working PSI
(at 70°F) |
|---|---|---|---|---|
| 2910334 | .250 (1/4) | .520 | .135 | 208 |
| 2910411 | .313 (5/16) | .592 | .140 | 183 |
| 2910488 | .375 (3/8) | .655 | .140 | 166 |
| 2910565 | .500 (1/2) | .800 | .150 | 141 |
| 2910719 | .750 (3/4) | 1.100 | .175 | 91 |
| 2910873 | 1.000 | 1.380 | .180 | 75 |
Sold by standard coil length only (25 ft.). Add length suffix to part number when ordering. Example: 25 ft. of 1/4″ I.D. hose is part number 291 0334-25.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
ID is the critical dimension for fittings application.
