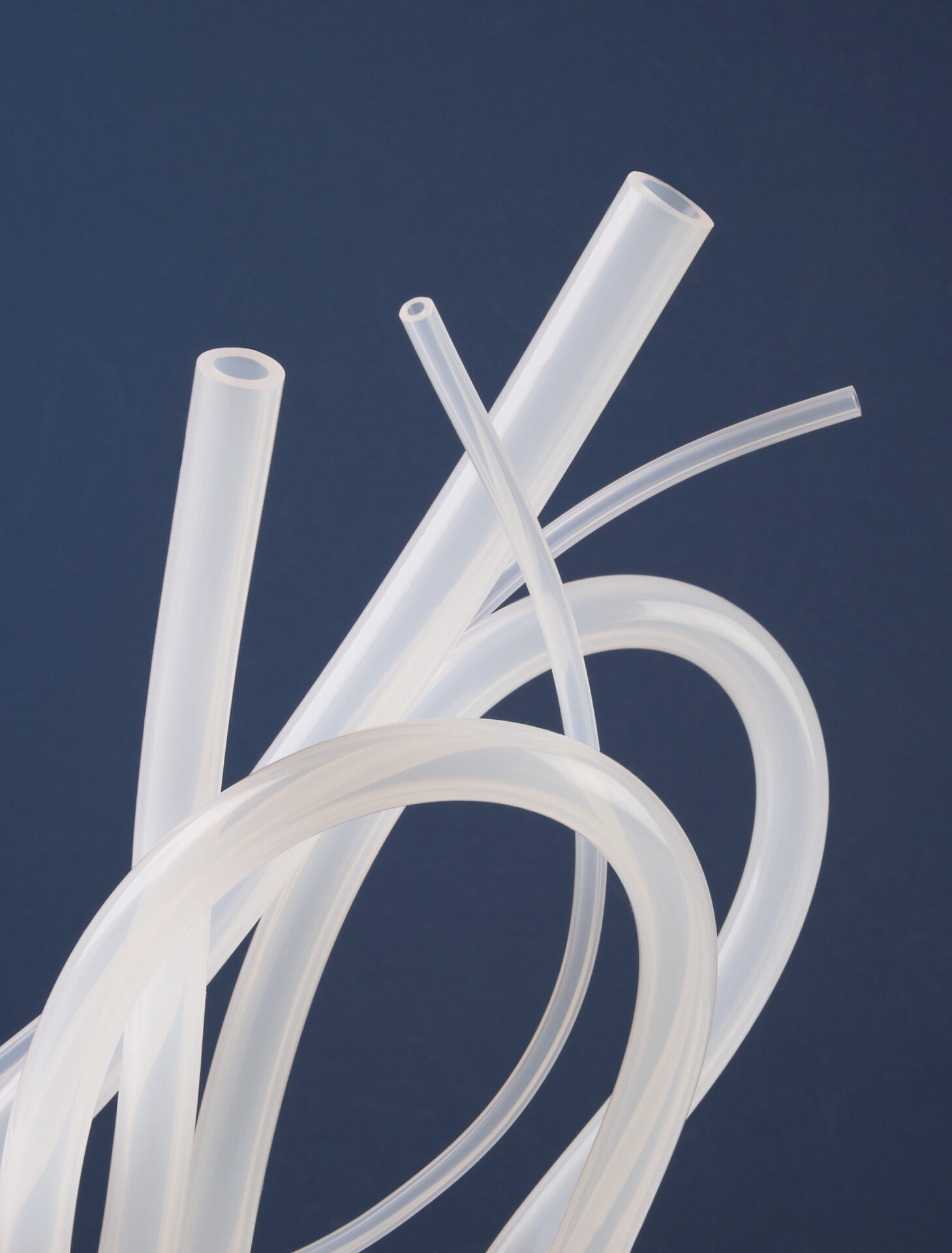

Silcon® Med-X Medical Grade Platinum-Cured Tubing
Silcon Med-X platinum-cured tubing meets USP Class VI requirements and is supplied in individual, heat-sealed polybag. Its low surface energy helps to resist adhesion and does not support bacteria growth. The tubing is highly elastic without the need for plasticizers which make it a preferred option for life science use. Other sizes and 60A durometer material are also available — call for details. Care is recommended in the selection and application of fittings and clamps as sharp barbed fittings or unlined metal clamps could tear into the wall. Silcon Med-X is supplied in individual, heat-sealed polybags. Should not be used in continuous steam applications.
- Platinum-cured for the highest degree of purity (least extractables)
- Finished product meets USP Class VI requirements
- Free of BPA, latex and phthalates
- Listed with NSF-51 for food and beverage equipment materials
- Naturally translucent so fluid flow is visible
- REACH and RoHS compliant
- Pharmaceutical
- Biomedical
- Health & Beauty
- Food & Beverage
- Laboratory Uses
- Personal Care
| Value | |
|---|---|
| Hardness, Shore A ±5 | 50 |
| Tensile Strength, psi | 1348 |
| Elongation at Break, % | 900 |
| Tear Resistance, Die B, ppi | 250 |
| Modulus at 100%, psi | 190 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Options & Sizes
| Part Number | ID (in.) |
OD (in.) |
Wall (in.) |
Colors |
|---|---|---|---|---|
| 2840404 | 0.03 | 0.16 | 0.065 | Natural |
| 2840677 | 1/16 | 1/8 | 1/32 | Natural |
| 2840684 | 1/16 | 3/16 | 1/16 | Natural |
| 2840978 | 1/8 | 1/4 | 1/16 | Natural |
| 2840985 | 1/8 | 5/16 | 3/32 | Natural |
| 2841174 | 3/16 | 5/16 | 1/16 | Natural |
| 2841181 | 3/16 | 3/8 | 3/32 | Natural |
| 2841272 | 1/4 | 3/8 | 1/16 | Natural |
| 2841279 | 1/4 | 7/16 | 3/32 | Natural |
| 2841286 | 1/4 | 1/2 | 1/8 | Natural |
| 2841370 | 5/16 | 7/16 | 1/16 | Natural |
| 2841377 | 5/16 | 1/2 | 3/32 | Natural |
| 2841468 | 3/8 | 1/2 | 1/16 | Natural |
| 2841475 | 3/8 | 9/16 | 3/32 | Natural |
| 2841482 | 3/8 | 5/8 | 1/8 | Natural |
| 2841580 | 1/2 | 3/4 | 1/8 | Natural |
| 2841678 | 5/8 | 7/8 | 1/8 | Natural |
| 2841685 | 1 | 1-1/2 | 1/4 | Natural |
| 2841692 | 3/4 | 1 | 1/8 | Natural |
*Limited stock availability; lead times and minimums may apply —
call for details.
Sold by standard coil length (50 ft); additional lengths may be available — call for details.
Add length suffix to part number when ordering. Example: 50 ft. of .030” I.D. x .160” O.D. tubing is part number 284 0404-50.
BOLD indicates the critical dimension for fittings application.
