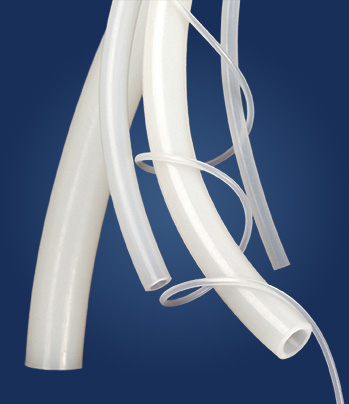

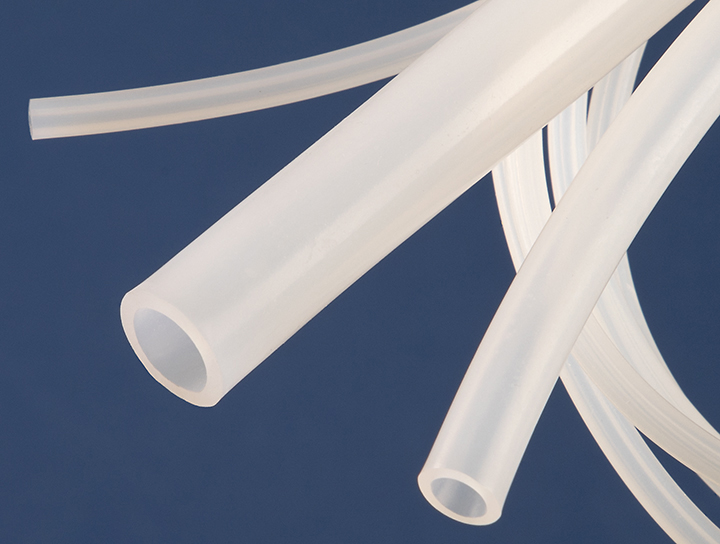

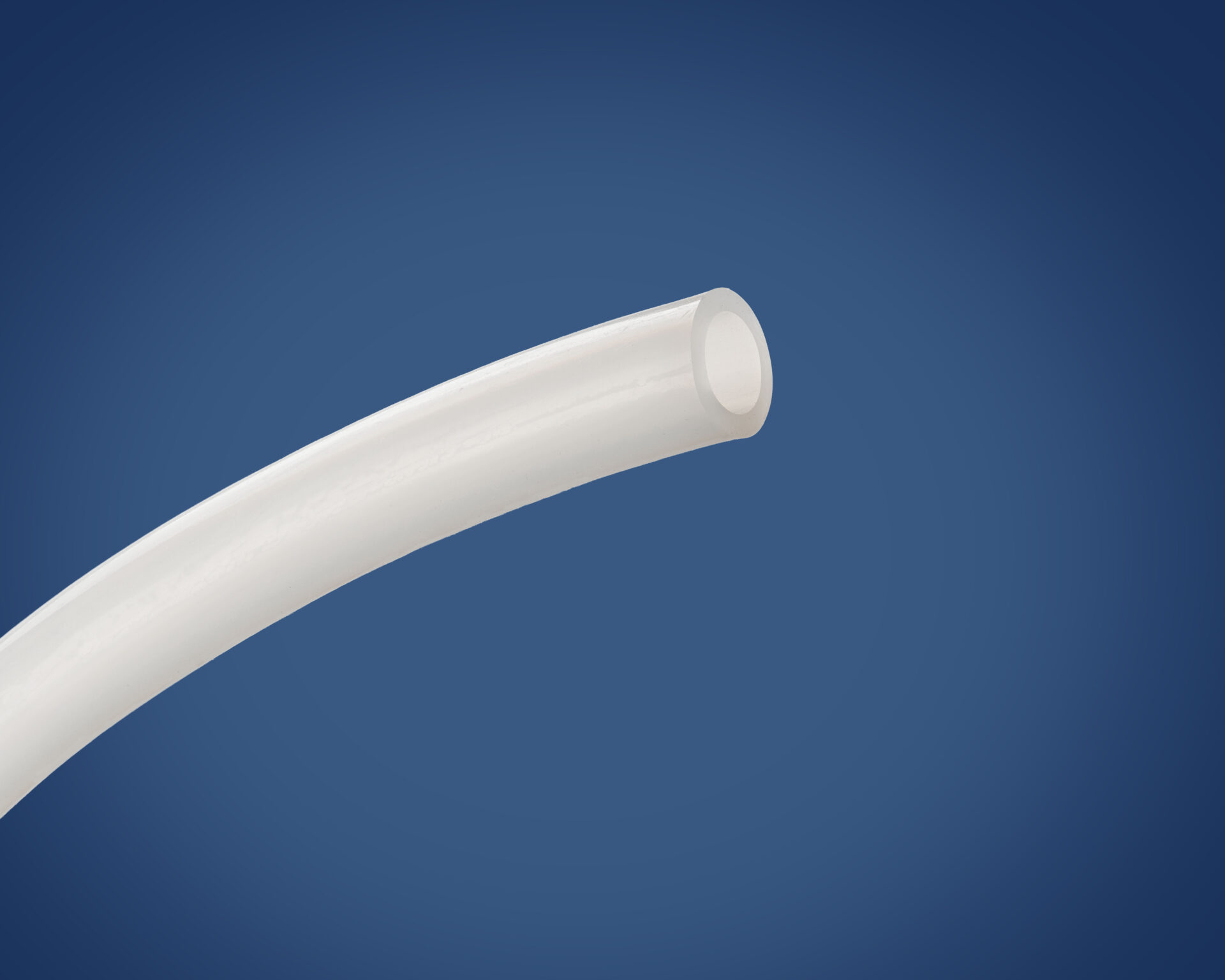

Silcon® Silicone Tubing
The most outstanding properties of Silcon are its flexibility and resistance to temperature extremes. These, plus its good electrical properties and ability to self-extinguish, make Silcon an excellent choice for appliances and thermal sleeving. Peroxide-cured Silcon contains no sulfur or other acid-producing chemicals, thereby eliminating the possibility of staining, corroding, or deteriorating materials it contacts. It is extremely resistant to ozone and U.V. over long time periods. Care is recommended in the selection of fittings and clamps for Silcon as sharp barbed fittings or unlined metal clamps could tear into the tubing wall and possibly cause a failure. Silcon may be low pressure steam sterilized in-line or autoclaved at up to 250°F in a normal autoclaving cycle. However, if exposed to repeated steam sterilization or long-term high temperature or pressure, silicone will eventually relax and become gummy. It should then be replaced. Colors for industrial applications are available through minimum order — call for details. Silcon is not recommended for implantable or in-body uses or for continuous steam applications.
- Peroxide-cured
- Able to resist extreme temperatures
- Meets FDA requirements per FDA 21 CFR 177.2600 for use with food contact surfaces
- Listed with NSF-51 for food and beverage equipment materials
- Conforms to 3-A Sanitary Standards for Number 18-03 (Multiple Use Rubber and Rubber-Like Materials)
- Free of BPA, latex and phthalates; RoHS compliant
- Reusable — will withstand repeated sterilization
- Translucent natural color for visual contact with the flow
- Resilient, stretchable, and resistant to compression set
- Good electrical and weatherability properties — resists U.V., ozone, gases, and moisture
- Commercial Appliances
- Beverage & Dairy Service
- Clean Rooms
- Deionized Water Transfer
- Dialysis
- Fermenter Lines
- Hot Fill & Vacuum Systems
- Laboratory Uses
- Liquid Resin Feeds
- Peristaltic Pump
- Personal Care Products
- Sterile Bottle Filling
- Thermal Protection
| Value | |
|---|---|
| Hardness, Shore A ±5 | 50 |
| Tensile Strength, psi/td> | 1444 |
| Elongation at Break, % | 608 |
| Tear Resistance, Die B, ppi | 120 |
| Modulus at 100%, psi | 186 |
| Brittle Temperature, °F | -100 |
| Max. Operating Temperature, °F | 500 |
| Max. Operating Temperature for NSF, °F | 350 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Size – Tubing is stocked in common I.D. and O.D. sizes, but this product can be custom extruded in other sizes. Let’s talk about what you need. Minimum quantities apply.
Color – Have your tubing colored to match equipment, company colors, or identify line (hot or cold, indoor or outdoor, chemicals, etc..).
Opaque and transparent colors may be accommodated. Minimum quantities apply.
All custom products are subject to minimum order quantities and lead times. For other custom options, please contact us.
Options & Sizes
|
Part Number
|
ID
(in) |
OD
(in) |
Wall
(in) |
Standard
Length (ft) |
Working PSI at 70°F
|
|---|---|---|---|---|---|
| 2800084 | .063 (1/16) | .125 (1/8) | .031 (1/32) | 100 | 10 |
| 2800161 | .063 (1/16) | .188 (3/16) | .063 (1/16) | 100 | 20 |
| 2800315 | .094 (3/32) | .156 (5/32) | .031 (1/32) | 100 | 10 |
| 2800392 | .094 (3/32) | .219 (7/32) | .063 (1/16) | 100 | 15 |
| 2800469 | .125 (1/8) | .188 (3/16) | .031 (1/32) | 100 | 10 |
| 2800546 | .125 (1/8) | .250 (1/4) | .063 (1/16) | 100 | 20 |
| 2800623 | .125 (1/8) | .313 (5/16) | .094 (3/32) | 100 | 25 |
| 2800700 | .125 (1/8) | .375 (3/8) | .125 (1/8) | 100 | 28 |
| 2800854 | .156 (5/32) | .281 (9/32) | .063 (1/16) | 100 | 20 |
| 2800931 | .156 (5/32) | .344 (11/32) | .094 (3/32) | 100 | 20 |
| 2801008 | .188 (3/16) | .250 (1/4) | .031 (1/32) | 100 | 5 |
| 2801085 | .188 (3/16) | .313 (5/16) | .063 (1/16) | 100 | 20 |
| 2801162 | .188 (3/16) | .375 (3/8) | .094 (3/32) | 100 | 20 |
| 2801239 | .188 (3/16) | .438 (7/16) | .125 (1/8) | 100 | 15 |
| 2801393 | .250 (1/4) | .313 (5/16) | .031 (1/32) | 100 | 10 |
| 2801470 | .250 (1/4) | .375 (3/8) | .063 (1/16) | 100 | 5 |
| 2801547 | .250 (1/4) | .438 (7/16) | .094 (3/32) | 100 | 20 |
| 2801624 | .250 (1/4) | .500 (1/2) | .125 (1/8) | 100 | 15 |
| 2801778 | .313 (5/16) | .438 (7/16) | .063 (1/16) | 100 | 10 |
| 2801855 | .313 (5/16) | .500 (1/2) | .094 (3/32) | 100 | 10 |
| 2801932 | .375 (3/8) | .500 (1/2) | .063 (1/16) | 100 | 10 |
| 2802009 | .375 (3/8) | .563 (9/16) | .094 (3/32) | 100 | 10 |
| 2802086 | .375 (3/8) | .625 (5/8) | .125 (1/8) | 100 | 10 |
| 2802163 | .375 (3/8) | .750 (3/4) | .188 (3/16) | 100 | 15 |
| 2802240 | .438 (7/16) | .625 (5/8) | .094 (3/32) | 100 | 10 |
| 2802317 | .500 (1/2) | .625 (5/8) | .063 (1/16) | 100 | 5 |
| 2802394 | .500 (1/2) | .688 (11/16) | .094 (3/32) | 100 | 5 |
| 2802471 | .500 (1/2) | .750 (3/4) | .125 (1/8) | 100 | 10 |
| 2802548 | .500 (1/2) | .875 (7/8) | .188 (3/16) | 100 | 10 |
| 2802625 | .625 (5/8) | .750 (3/4) | .063 (1/16) | 100 | 5 |
| 2802702 | .625 (5/8) | .813 (13/16) | .094 (3/32) | 100 | 5 |
| 2802779 | .625 (5/8) | .875 (7/8) | .125 (1/8) | 100 | 5 |
| 2802856 | .625 (5/8) | 1.000 | .188 (3/16) | 100 | 10 |
| 2803087 | .750 (3/4) | 1.000 | .125 (1/8) | 50 | 5 |
| 2803164 | .750 (3/4) | 1.125 (1-1/8) | .188 (3/16) | 50 | 10 |
Add length suffix to part number when ordering.
Example: 100 ft. of 1/16” I.D. x 1/8” O.D. tubing is part number 280 0084-100.
Working pressures are calculated from burst testing using a 3:1 safety factor.
Application testing is recommended.
Colors for industrial applications are available through minimum order — call for details.
BOLD indicates the critical dimension for fittings application.
