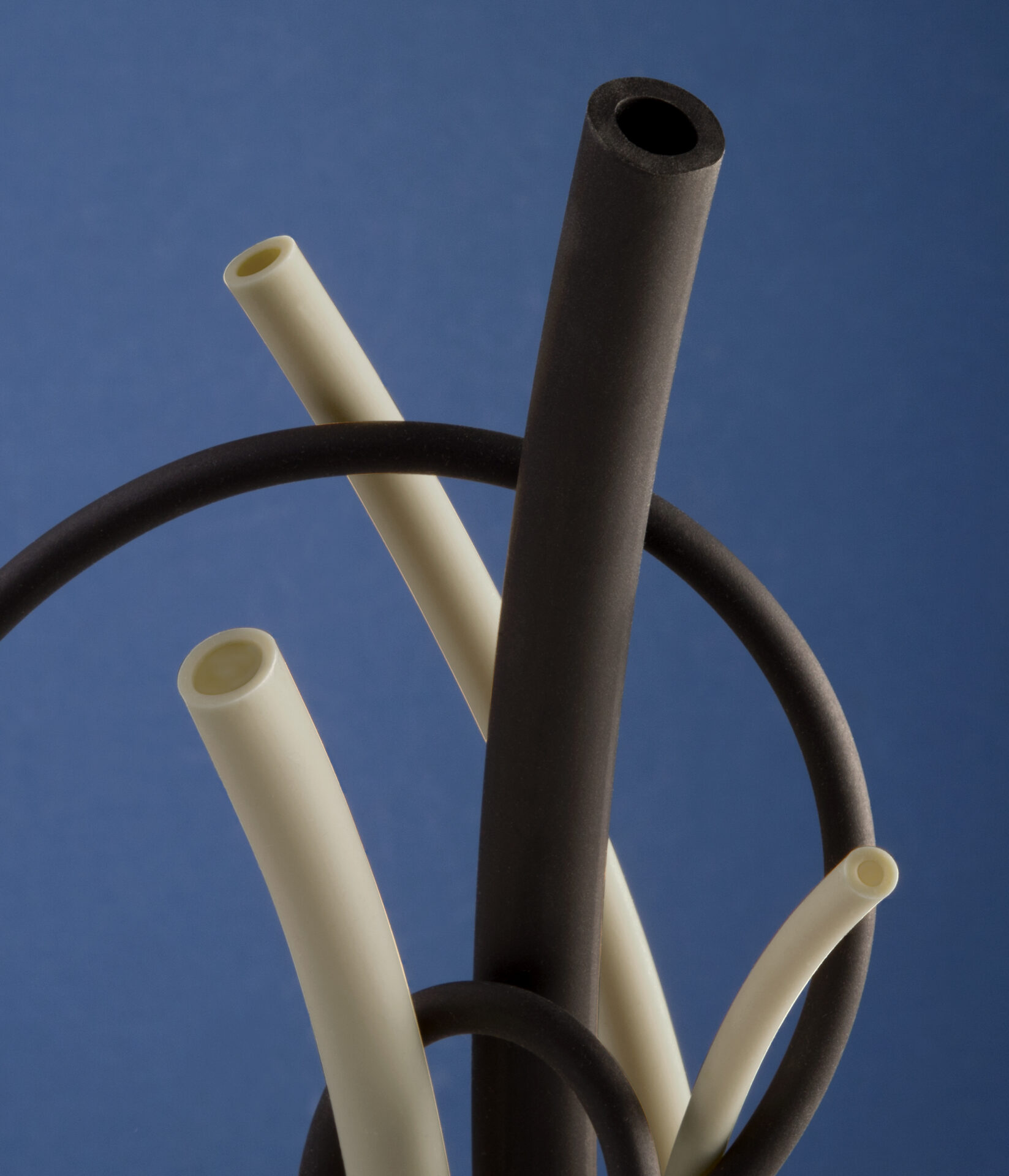

Suprene® Thermoplastic Rubber Tubing
Suprene thermoplastic rubber (TPR) tubing combines the processability of plastics with the flexibility and durability of rubbers. Typically more lightweight and formable than rubber, TPR has been growing in acceptance for many applications. It provides outstanding compression characteristics, making it an ideal choice for peristaltic pump applications.
The FDA raw material is suitable for a variety of clean uses and is autoclavable. The material also offers excellent resistance to flex fatigue and tear. It maintains good flexibility to temperatures approaching -80°F.
Black industrial Suprene offers good resistance to U.V. radiation, ozone, chemicals and other fluids. It will also handle applications where oil may splash onto the tubing and is well suited for outdoor use.
- Made of first-quality, polypropylene-based, thermoplastic rubber (TPR
- Outstanding compression characteristics and toughness for peristaltic pump uses
- Maintains good flexibility at low temperatures
- RoHS compliant
- Free of conflict minerals, BPA and animal-derived ingredients
- Available in FDA or industrial grade
- FDA grade is autoclavable
- Industrial grade is well suited for outdoor use
- Resin is listed by the National Sanitation Foundation (NSF-51) for food equipment materials
- FDA raw material complies with FDA 21 CFR 177.2600
- FDA raw material meets UL94 HB burn rating
- Very good chemical resistance to fluids such as alcohols, ozone, aqueous systems and corrosive aqueous systems
| Natural FDA Grade | Black Industrial Grade | |
|---|---|---|
| Hardness, Shore D ±5 | 69 | 69 |
| Tensile Strength, psi | 957 | 1020 |
| Elongation at Break, % | 490 | 450 |
| Tear Strength, ppi | 131 | 131 |
| Brittle Temperature, °F | -76 | -76 |
| Max. Operating Temperature, °F | 275 | 275 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
- Agriculture & Lawn Equipment
- Air Conditioning
- Appliances
- Chemical Conveyance
- Cosmetic Packaging
- Food & Beverage
- Ink Transfer
- Paint Spray Systems
- Peristaltic Pumps
- Photographic Chemical Transfer
Cut Pieces – When tubing comes in, for example, 100-foot coils, and you need it in 10-foot coils, NewAge can cut the tubing for you, enabling your order to arrive ready to use. Request a quote.
Options & Sizes
| Part Number Natural FDA Grade |
Part Number Black Industrial Grade |
ID (in) |
OD (in) |
Wall (in) |
|---|---|---|---|---|
| 460 0246 | 461 0228 | 1/8 | 1/4 | 0.062 |
| 460 0414 | 3/16 | 5/16 | 0.062 | |
| 460 0582 | 461 0564 | 1/4 | 3/8 | 0.063 |
| 460 0638 | 461 0620 | 1/4 | 1/2 | 1/8 |
| 460 0694 | 5/16 | 7/16 | 0.062 | |
| 460 0862 | 3/8 | 1/2 | 0.062 | |
| 460 0974 | 461 0956 | 3/8 | 5/8 | 1/8 |
| 460 1310 | 461 1292* | 1/2 | 3/4 | 1/8 |
| 460 1646 | 461 1628 | 5/8 | 7/8 | 1/8 |
| 460 1926 | 3/4 | 1 | 1/8 |
*Limited stock availability; lead times and minimums may apply — call for details.
Sold by standard length only (50 ft).
Add length suffix to part number when ordering.
Example: 50 ft. of 1/8” I.D. x 1/4” O.D. Black Industrial tubing
is part number 461 0228-50.
ID is the critical dimension for fittings application.
