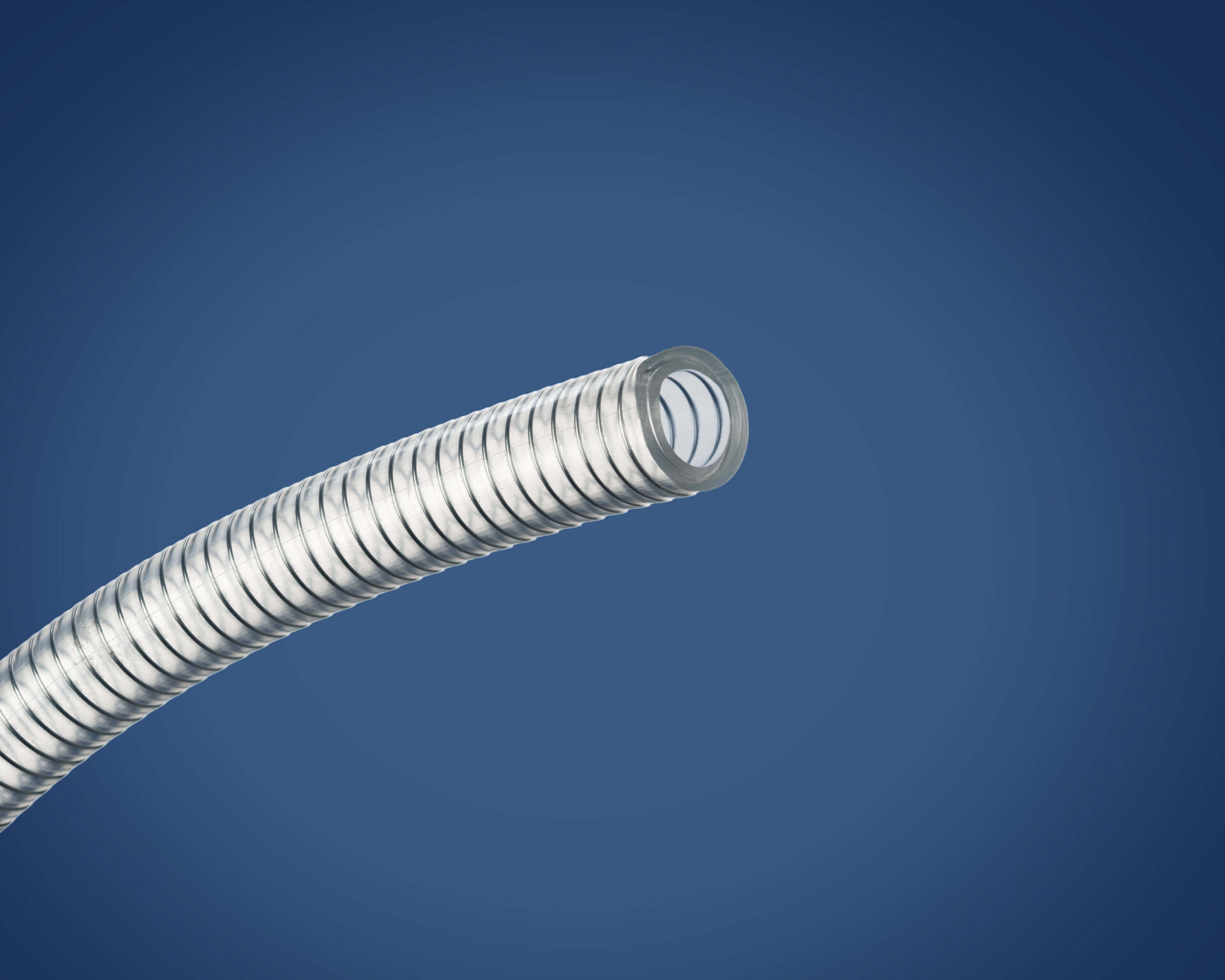

Vardex® Steel Wire Reinforced PVC Hose
Vardex, with its steel wire reinforcement coil, is specially suited for applications where resistance to kinking is of primary importance. A proprietary construction technique employed during the manufacture of Vardex permits full vacuum capabilities (29.9 in/Hg.) for all sizes without hose collapse. Constructed of corrosion-resistant PVC, Vardex can be used to transport various chemicals in areas with tight turns and sharp bends. Its bend radius is approximately four times the ID For easy identification, Vardex is imprinted with the trademarked name.
- Spiral steel wire reinforcement incorporated within the wall of flexible PVC tubing
- Made from non-toxic ingredients conforming to FDA standards
- Kink and crush resistant
- Handles pressure and full vacuum (29.9 in.Hg.) applications
- Glass-like clarity with mirror-smooth surfaces provide outstanding visual flow characteristics
- Lightweight (compared to rubber hose) yet tough and abrasion resistant
- REACH compliant
- Chemical Transfer
- Conduit
- Coolant Lines
- Environmental Suit Air Feed
- Floor Cleaning Equipment
- Food & Beverage Lines
- Material Handling
- Shop Air Supply
- Spray Systems
- Vacuum Lines
- Water Feeds
| Value | |
|---|---|
| Hardness, Shore A ±5 | 73 |
| Tensile Strength, psi | 2100 |
| Elongation at Break, % | 270 |
| Brittle Temperature, °F | 23 |
| Max. Operating Temperature, °F | 150 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Options & Sizes
| Part Number | ID (in) |
OD (in) |
Wall (in) |
Working PSI at 70°F |
Bend Radius (in) |
|---|---|---|---|---|---|
| 1400070 | 0.250 (1/4) | 0.453 | 0.102 | 200 | 1 |
| 1400112 | 0.375 (3/8) | 0.61 | 0.118 | 175 | 1.5 |
| 1400154 | 0.500 (1/2) | 0.748 | 0.124 | 140 | 2 |
| 1400196 | 0.625 (5/8) | .906 (29/32) | 0.141 | 100 | 2.5 |
| 1400238 | 0.750 (3/4) | 1.024 | 0.137 | 100 | 3 |
| 1400280 | 1 | 1.319 | 0.16 | 85 | 4 |
| 1400322 | 1.250 (1-1/4) | 1.634 | 0.192 | 85 | 4.5 |
| 1400364 | 1.500 (1-1/2) | 1.909 | 0.205 | 85 | 6 |
| 1400406 | 2 | 2.382 | 0.191 | 70 | 8 |
Standard coil length is 100 ft. Add length suffix to part number when ordering.
Example: 100 ft. of 2” ID x 2.382” OD hose is part number 140 0406-100.
Working pressures are calculated from burst testing using a 3:1 safety factor.
Application testing is recommended.
ID is the critical dimension for fittings application.
