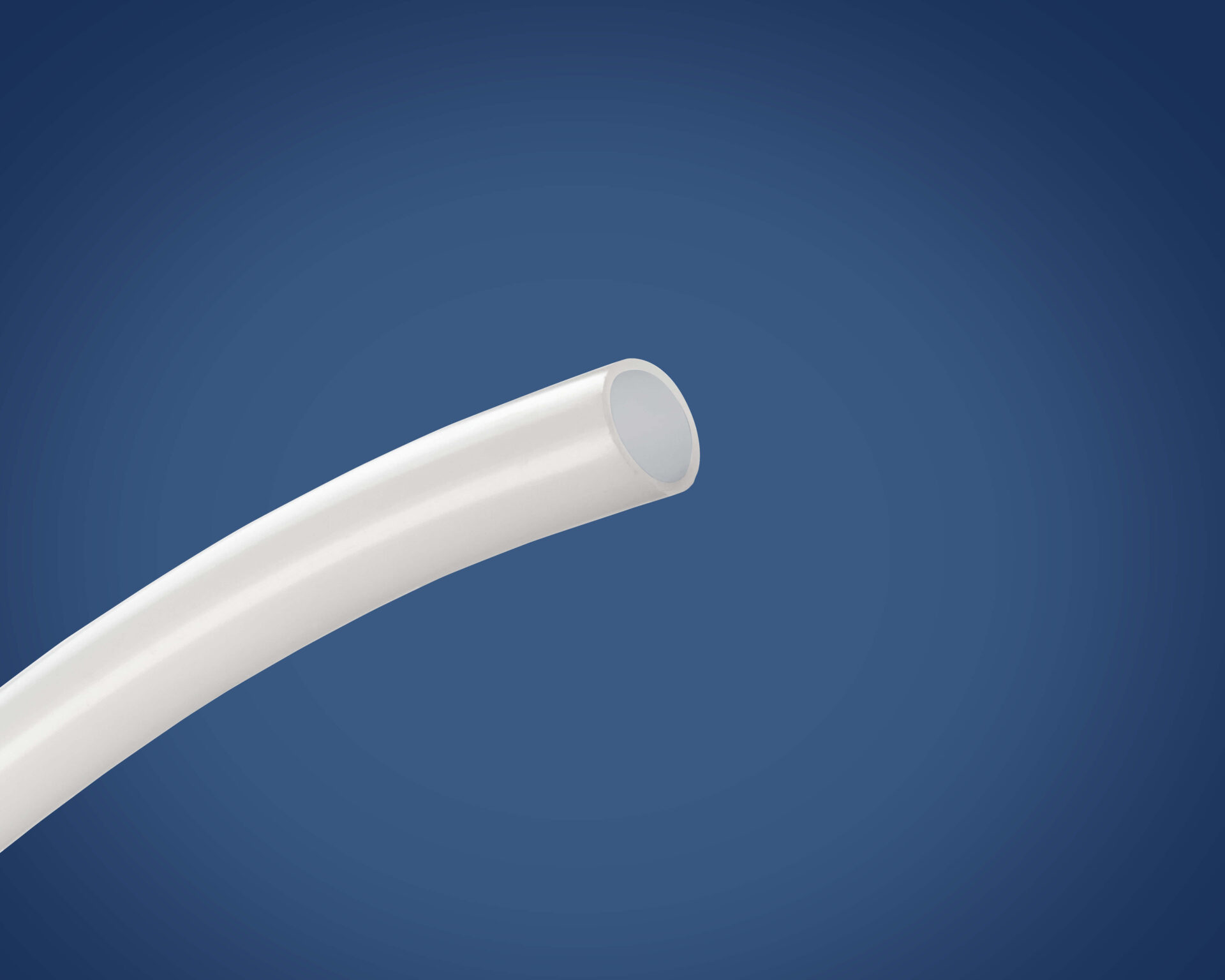

Zelite® Low-Density Polyethylene Tubing
Zelite LDPE tubing conforms to the applicable regulations of the FDA for use in articles intended for contact with food. The increased tensile strength of Zelite Linear Low Density, over that of a low-density polyethylene, enhances its resistance to splitting during use. FEP-lined polyethylene, offering superior purity at a very reasonable cost, is available through minimum order. Medium-high and ultra-high density polyethylene material is available through minimum order. Call for details on these custom products.
- Made from non-toxic ingredients conforming to FDA standards
- Does not impart a taste or odor to critical streams
- Flexible, lightweight, durable

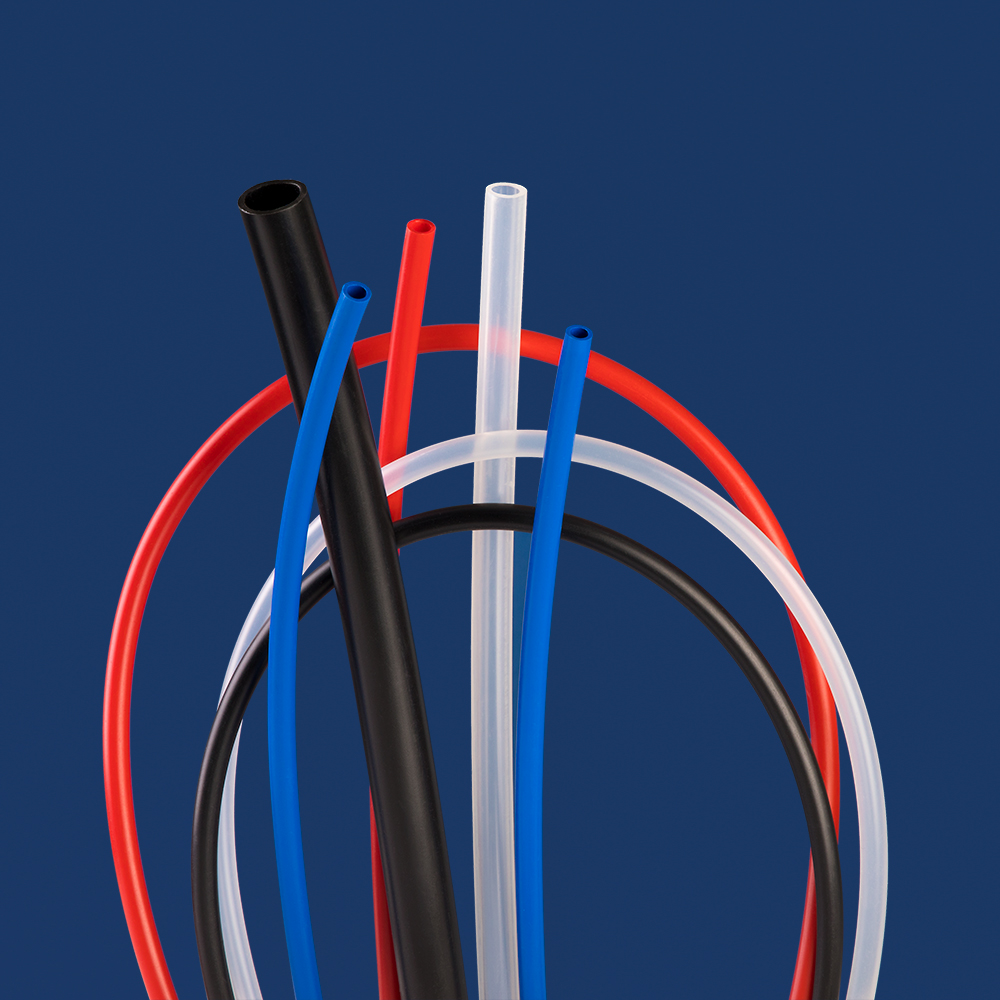

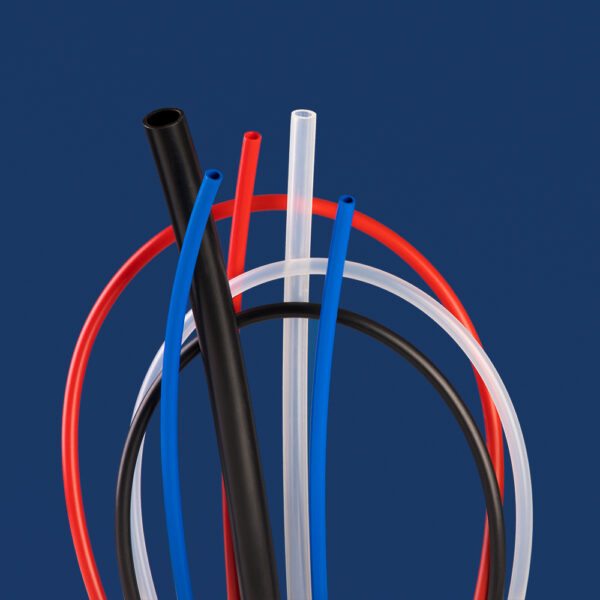

- Translucent natural or opaque colors
- Made from 100% virgin grade raw materials
- Good dielectric properties
- Offers enhanced resistance to stress cracking
- Chemically inert; forms a good barrier to gases, vapors, and moisture
- Air Lines
- Chemical Lines
- Fluid Feeds
- Food & Beverage Processing
- Hospitals & Laboratories
- Instrumentation
- OEM Large Machines
- Spacers
- Wire Jacketing
| Value | |
|---|---|
| Hardness, Shore D ±5 | 50 |
| Tensile Strength, psi | 2250 |
| Elongation at Break, % | 600 |
| Brittle Temperature, °F | -76 |
| Vicat Softening Point, °F | 196 |
| Max. Operating Temperature, °F | 140 |
NOTE: Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.
Cut Pieces – When tubing comes in, for example, 100 foot coils, and you need it in 10’ sections, tubing can be cut. Request a quote.
Size – Tubing is stocked in common I.D. and O.D. sizes, but this product can be custom extruded in other sizes. Let’s talk about what you need. Minimum quantities apply.
Color – Have your tubing colored to match equipment, company colors, or identify line (hot or cold, indoor or outdoor, chemicals, etc.).
Options & Sizes
| Part Number Natural |
Part Number Black |
Part Number Red |
Part Number Blue |
ID (in) |
OD (in) |
Wall (in) |
Standard Length (ft) |
Working PSI at 70°F |
Burst PSI at 70°F |
|---|---|---|---|---|---|---|---|---|---|
| 2510571 | 2510529 | 2510606 | 2510543 | 0.170 | 1/4 | 0.040 | 500 | 135 | 540 |
| 2510571 | 0.170 | 1/4 | 0.040 | 100 | 135 | 540 | |||
| 2510256 | 2510214 | 1/8 | 1/4 | 1/16 | 500 | 180 | 720 | ||
| 2510256 | 1/8 | 1/4 | 1/16 | 100 | 180 | 720 | |||
| 2510886 | 3/16 | 5/16 | 1/16 | 500 | 140 | 560 | |||
| 2510886 | 3/16 | 5/16 | 1/16 | 100 | 140 | 560 | |||
| 2511201 | 251 1159 | 1/4 | 3/8 | 1/16 | 500 | 120 | 480 | ||
| 2511201 | 1/4 | 3/8 | 1/16 | 100 | 120 | 480 | |||
| 2512146 | 251 2104 | 3/8 | 1/2 | 1/16 | 500 | 90 | 360 | ||
| 2512146 | 3/8 | 1/2 | 1/16 | 100 | 90 | 360 | |||
| 2512293 | 251 2279 | 1/2 | 5/8 | 1/16 | 100 | 70 | 280 | ||
| 2512398 | 5/8 | 3/4 | 1/16 | 100 | 60 | 240 | |||
| 2512713 | 3/4 | 1 | 1/8 | 100 | 90 | 360 | |||
| 2512818 | 7/8 | 1 | 1/16 | 100 | 45 | 180 | |||
| 2512923 | 1 | 1-1/4 | 1/8 | 100 | 72 | 288 | |||
| 2513028 | 1-1/4 | 1-1/2 | 1/8 | 50 | 59 | 236 | |||
| 2513133 | 1-1/2 | 1-3/4 | 1/8 | 50 | 50 | 200 |
Add length suffix to part number when ordering. Example: 500 ft. of 0.170” ID x 1/4” OD black color tubing is part number 251 0529-500.
Red and blue color tubing is sold by standard coil length only (500 ft.).
ID is the critical dimension for fittings application.
